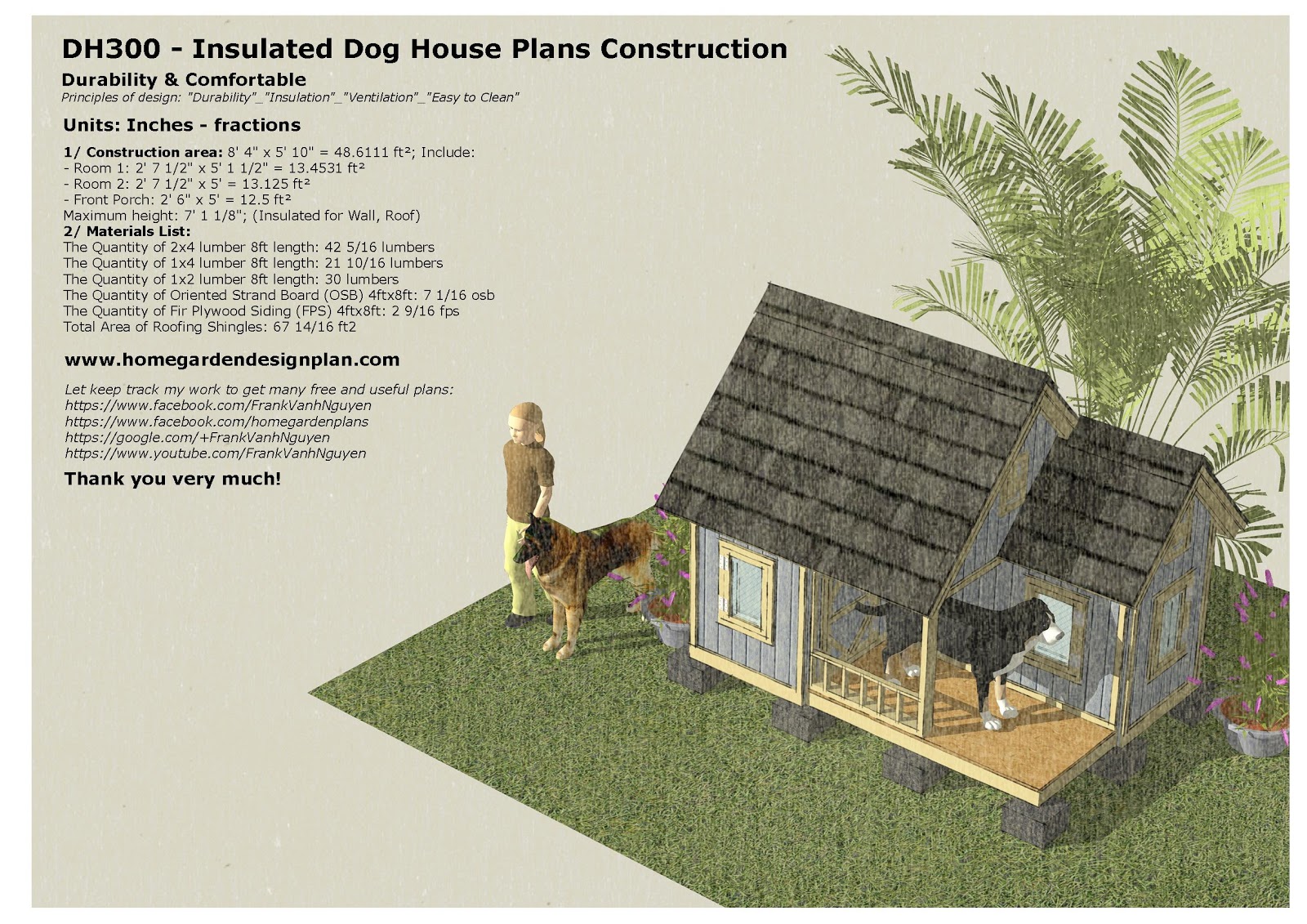

DH300 - Insulated Dog House Plans Construction - How To Build An Insulated Dog House

DH300 - Insulated Dog House Plans Construction
How To Build An Insulated Dog House

DH300 - Insulated Dog House Plans Construction
How To Build An Insulated Dog House
...
Principles of design
Durability & Comfortable
"Durability"_"Insulation"_"Ventilation"_"Easy to Clean"
...
Units: Inches - fractions
...

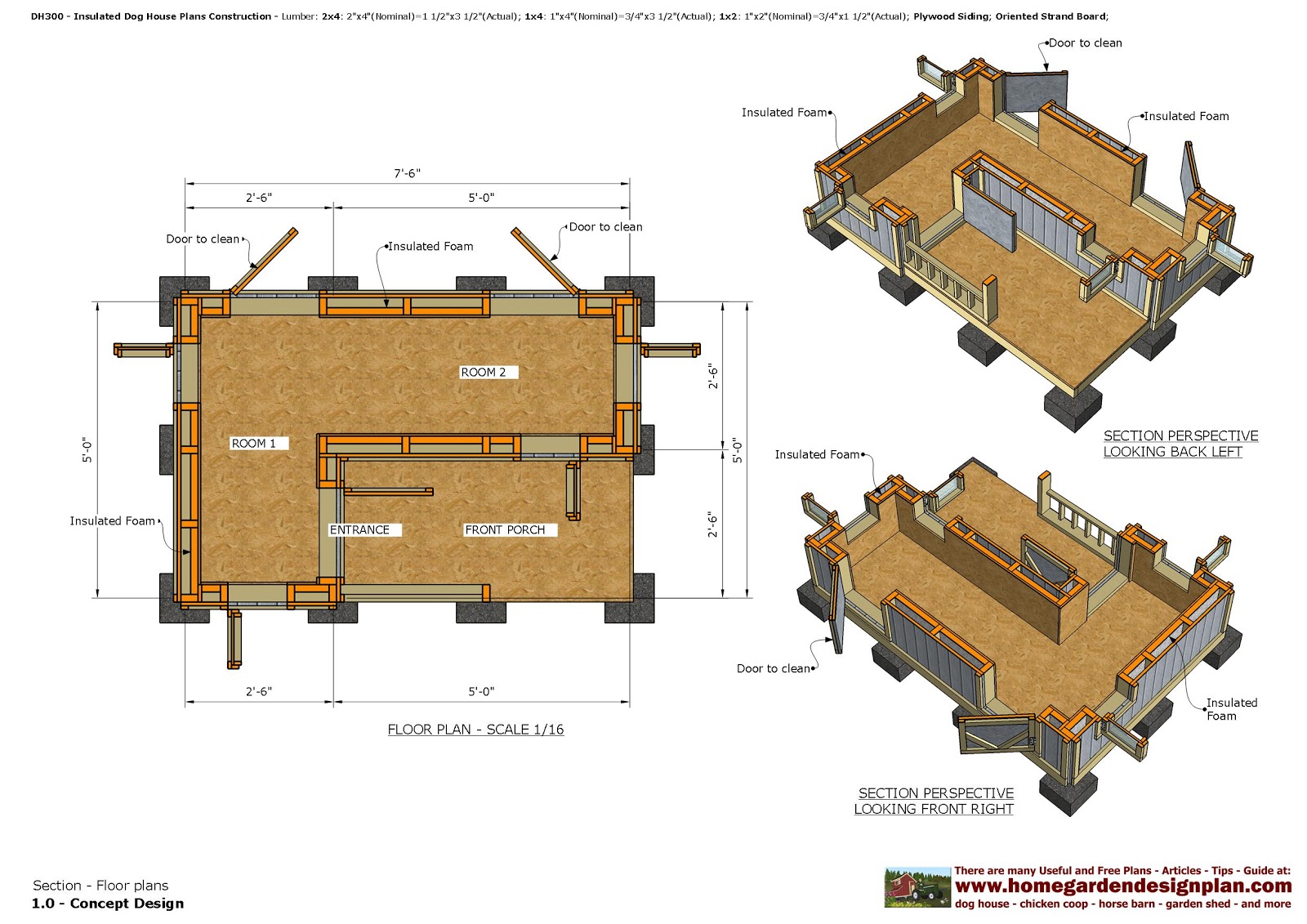

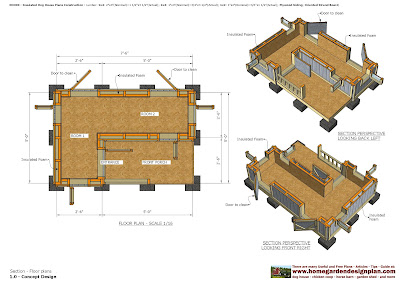

1/ Construction area: 8' 4" x 5' 10" = 48.6111 ft²; Include:
- Room 1: 2' 7 1/2" x 5' 1 1/2" = 13.4531 ft²
- Room 2: 2' 7 1/2" x 5' = 13.125 ft²
- Front Porch: 2' 6" x 5' = 12.5 ft²
Maximum height: 7' 1 1/8"; (Insulated for Wall, Roof)
2/ Materials List:
The Quantity of 2x4 lumber 8ft length: 42 5/16 lumbers
The Quantity of 1x4 lumber 8ft length: 21 10/16 lumbers
The Quantity of 1x2 lumber 8ft length: 30 lumbers
The Quantity of Oriented Strand Board (OSB) 4ftx8ft: 7 1/16 osb
The Quantity of Fir Plywood Siding (FPS) 4ftx8ft: 2 9/16 fps
Total Area of Roofing Shingles: 67 14/16 ft2
...
3/ The functional component - the build step guide - Table of Contents:

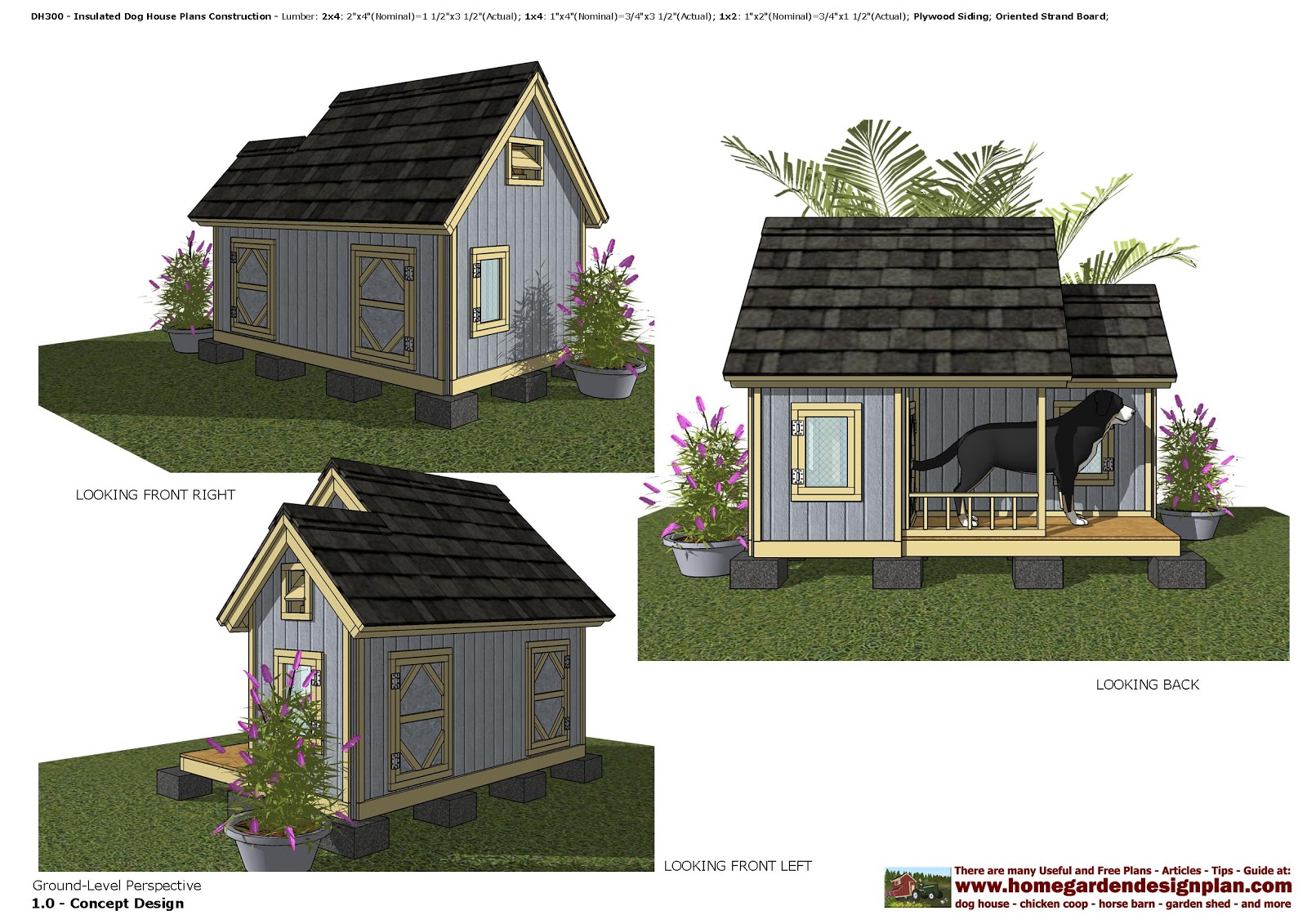

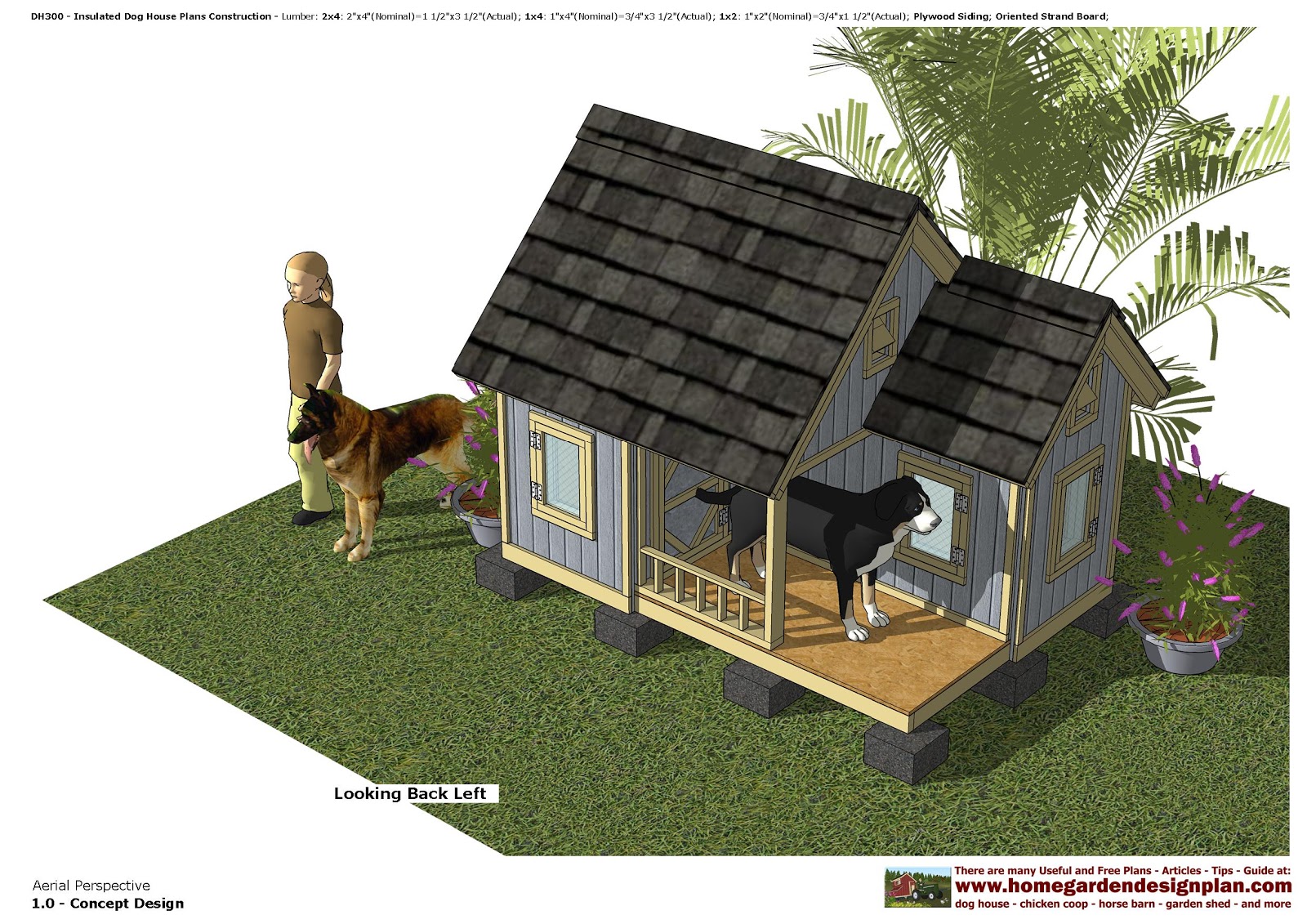

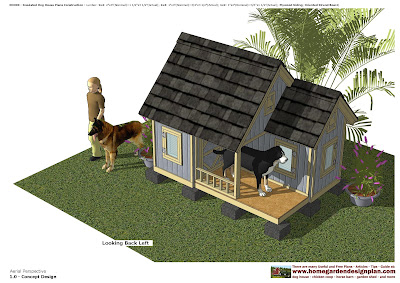

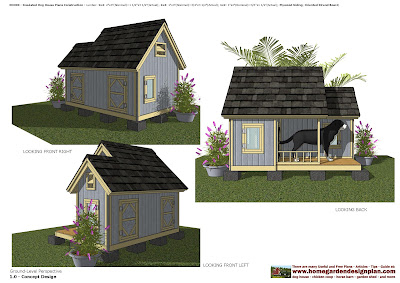

1.0 - Concept Design,
2.0 - Building foundations,
3.0 - Building Floor,
4.0 - Building Frame,
5.0 - Building Interior Walls: Oriented Strand Board (OSB),
6.0 - Building Roof Beam,
7.0 - Building Insulated Foam,
8.0 - Building Exterior Wall,
9.0 - Building Roof,
10.0 - Building Door, Windows,
11.0 - Thank you,
...













DH300 - Insulated Dog House Plans Construction
How To Build An Insulated Dog House
...
Detailed Plans for Construction
(PDF, Excel file: Units: Inches - fractions
printed on A4 or A3 size paper)
19.96$

(Buy Safely with www.paypal.com)
See the instructions to buy products at:
...
Link to download certainly appears at Step 4: When you complete the payment.
Please click "Nguyen Viet Anh"
to go to the product download page
...
Whether you download the product on my automatic system payment
I will send you a download link by email as soon as I see you have paid
I want a way to make sure that you will download the product
...
Thank you very much!
Let keep track my work to get alot of Free and Useful Plans
...
DH300 - Insulated Dog House Plans Construction
How To Build An Insulated Dog House
Nhãn: , ,

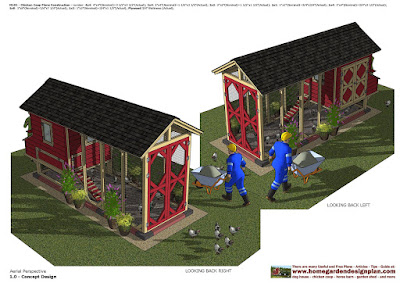

M102 - Chicken Coop Plans Construction - How To Build A Chicken Coop

M102 - Chicken Coop Plans Construction - How To Build A Chicken Coop

M102 - Chicken Coop Plans Construction
How To Build A Chicken Coop
...
Principles of design
Durability & Comfortable
"Durability"_"Insulation"_"Ventilation"_"Easy to Clean"
...
It can comfortably hold 15 chickens
Nesting boxes for 3 hens
...
Units: Inches - fractions
Overall size: 5' x 5' for Cage
5' 3 1/2" x 1' 10 1/2" for Nesting Boxes for 3 Hens
17'-6 1/2" x 7'-3 9/16" x 9' 8" (height) for area of ​​the building
Construction area: 131.25 Feet ²
Total volume of lumber: 117039 inches3 (= 67 feet3)
Total area of plywood: 320 feet2 (= 10 plywoods with 4'x8')
...
Dimensional lumber sizes:
4"x4"(Nominal)=3 1/2"x3 1/2"(Actual); 2"x4"(Nominal)=1 1/2"x3 1/2"(Actual); 2"x2"(Nominal)=1 1/2"x1 1/2"(Actual); 1"x1"(Nominal)=3/4"x3/4"(Actual); 1"x4"(Nominal)=3/4"x3 1/2"(Actual);
1"x8"(Nominal)=3/4"x7 1/4"(Actual); 1"x2"(Nominal)=3/4"x1 1/2"(Actual); Plywood 3/4" thickness (Actual);
...
Units: Millimeters - decimal
Overall size: 1.6m x 1.6m = 2.6 m² for Cage
1.6m x 0.5m = 0.7 m² for Nesting Boxes for 3 Hens
5.3m x 2.2m x 2.9m (height) for area of ​​the building
Construction area: 8.9 m²
Total volume of lumber: 1.858 m3
Total area of plywood: 29.75 m2 (= 10 plywoods with 1.2x2.4m)
...
Dimensional lumber sizes:
4x4: 100x100mm(Nominal)=89x89mm(Actual); 2x4: 50x100mm(Nominal)=38x89mm(Actual); 2x2: 50x50mm(Nominal)=38x38mm(Actual); 1x1: 25x25mm(Nominal)=19x19mm(Actual);
1x4: 25x100mm(Nominal)=19x89mm(Actual); 1x8: 25x200mm(Nominal)=19x184mm(Actual); 1x2: 25x50mm(Nominal)=19x38mm(Actual); Plywood 3/4"=19mm thickness (Actual);
...
The functional component - the build step guide - Table of Contents:

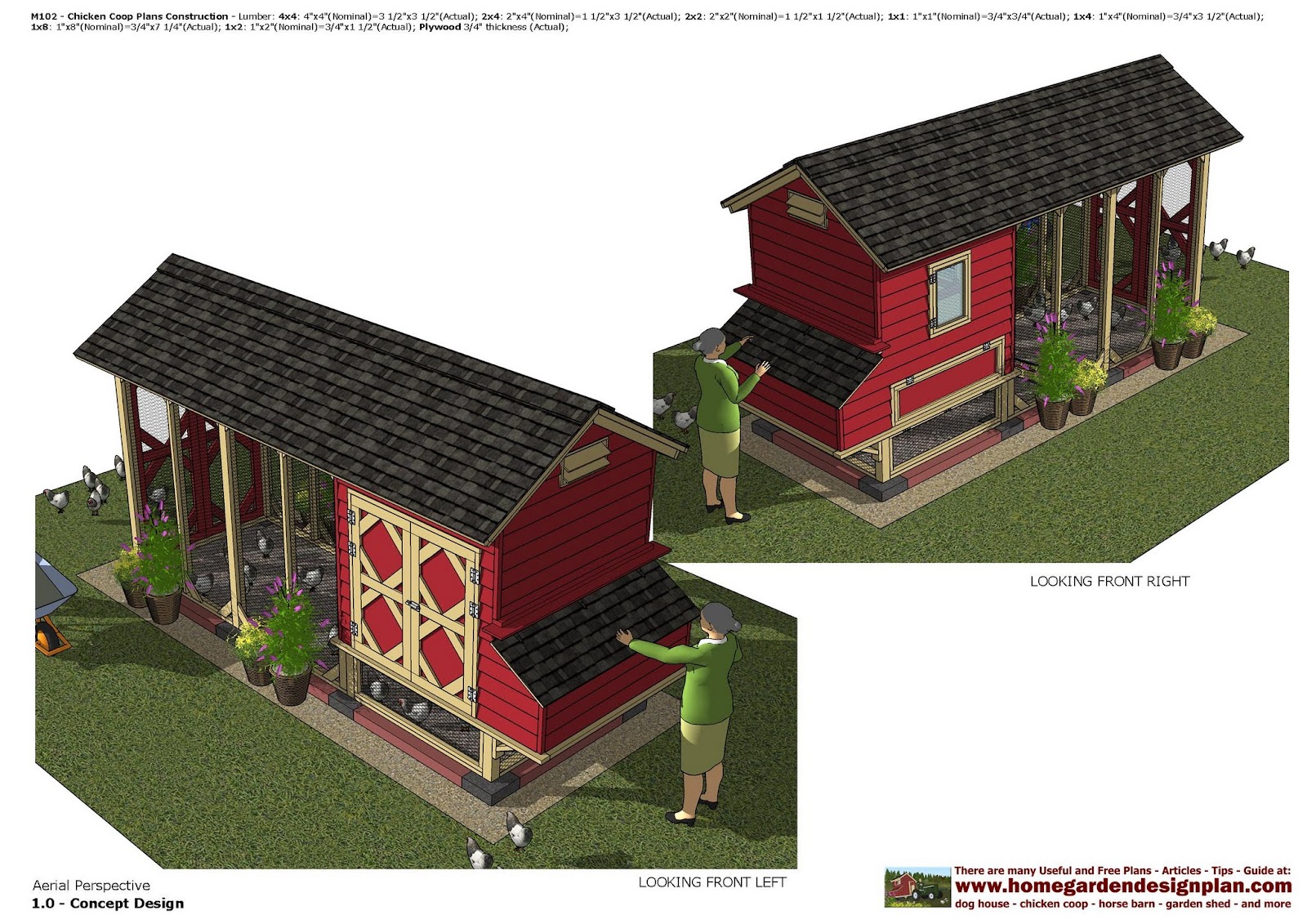

1.0 - Concept Design
2.0 - Building foundations
3.0 - Building Post
4.0 - Building Frame
5.0 - Building Floor
6.0 - Building Nest Boxes
7.0 - Building Interior Walls
8.0 - Building Perches
9.0 - Building Frame for Door, Windows, Vents
10.0 - Building Litter Tray
11.0 - Building Roof Beam
12.0 - Building Foam Insulated for Roof
13.0 - Building Foam Insulated for Wall
14.0 - Building Exterior Wall
15.0 - Building Door, Windows
16.0 - Building Chicken Ramp
17.0 - Building Chicken Run
18.0 - Building Roof
19.0 - Building Chicken Run
...












M102 - Chicken Coop Plans Construction
How To Build A Chicken Coop
...
(Newly Upgraded Version)
...
I'm upgrading the entire plan, and I always do so, I am reducing the volume of wood in construction and still achieve what we want, to save money, build faster, easier,
I am presenting a plan for a better way with less drawing, to save money on printing and viewing time, download time,
I am following the suggestions and feedback from all of you,
...
Thank you very much!
Let keep track my work to get alot of Free and Useful Plans
...
M102 - Chicken Coop Plans Construction
How To Build A Chicken Coop
